What Is a Net in Geometry? A Kid-Friendly Guide

We usually think of shapes as either flat or solid. Flat figures have two dimensions, length and width, and can also be called two-dimensional or 2D. Solid shapes have a third dimension, depth, so we call them three-dimensional or 3D.

But what if we need to show a 3D object as a flat 2D shape on paper? For example, how can an architect plan a building before it exists? Or how can an engineer lay out the parts of a machine before it is built?

That’s where a geometric net comes in, a special tool that helps to connect the 3D solid to a flat 2D layout. Let’s find out together what a geometric net is and how to identify and draw one.

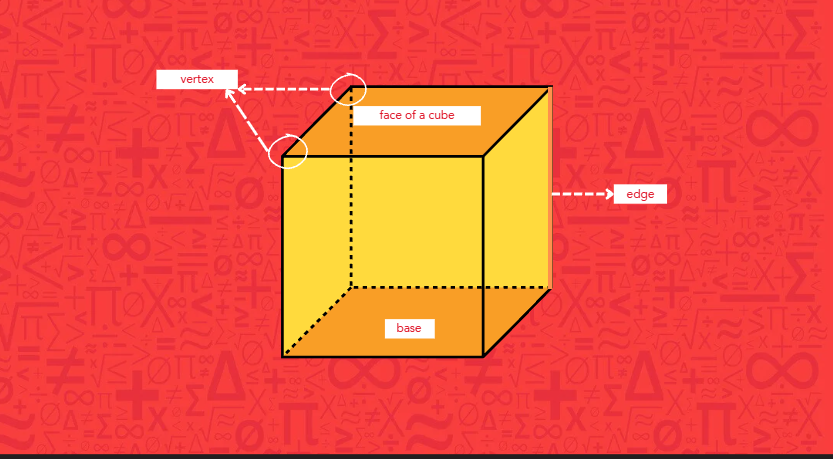

Quick Review: Parts of 3D Shapes

Before diving into the concept of nets, let’s refresh our memory on the main parts of 3D shapes. They include:

• Face is a flat surface of a 3D shape

• Edge is the line where two faces meet

• Vertex is a point where edges meet

• Base is a face used as the bottom or reference face of a 3D shape

📕 You May Also Like: What Are Vertices, Edges, and Faces? A Complete Overview

What Is a Net in Geometry?

A net in geometry is a two-dimensional shape that shows all the faces of a solid laid out flat and connected along shared edges. When we fold the net along those edges, it forms a three-dimensional solid.

Take a cube as an example. Its net is made of six connected squares. When we fold the squares along their shared edges, they form a cube.

Now let’s use the cube to see what makes a flat layout a net:

1. It includes every face of the solid. Our cube has six square faces, so its net contains six squares.

2. The faces connect along shared edges. Each square shares an edge with at least one other square. Those shared edges become the folds that bring the cube together.

3. The surface stays the same. The total area of the six squares in the net equals the surface area of the finished cube. When we fold a net, we rearrange its faces without changing the total surface area.

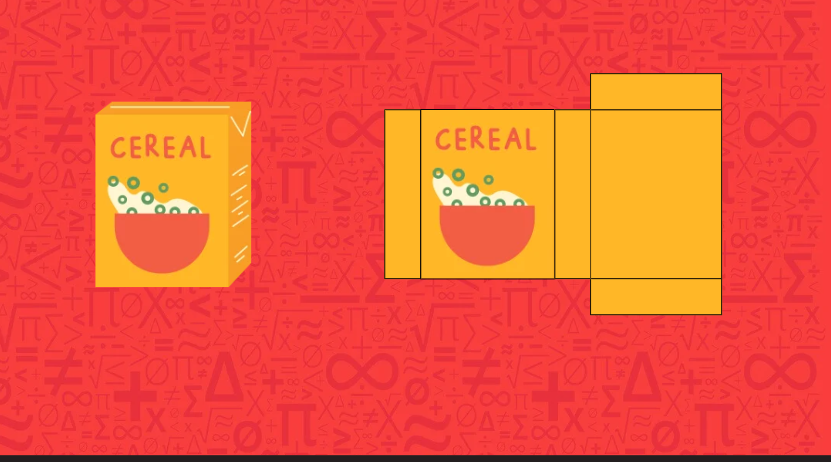

We can see the same idea with something familiar, like a cereal box. If we carefully cut along some of its edges and unfold it, the box can lie flat on the table.

We would see all six rectangular faces connected in one 2D layout. Fold those faces back along the edges, and we get the 3D box again.

How to Tell What Solid a Net Is Made Of

To identify the solid a net represents, we need to check a few things:

1. Count the faces and notice their shapes.

2. Match the faces to a possible solid. Figure out which 3D solid may have that same number and type of faces. For example, six squares point us toward a cube.

3. Picture the folds. Check whether the edges would meet in the right places when the net is folded.

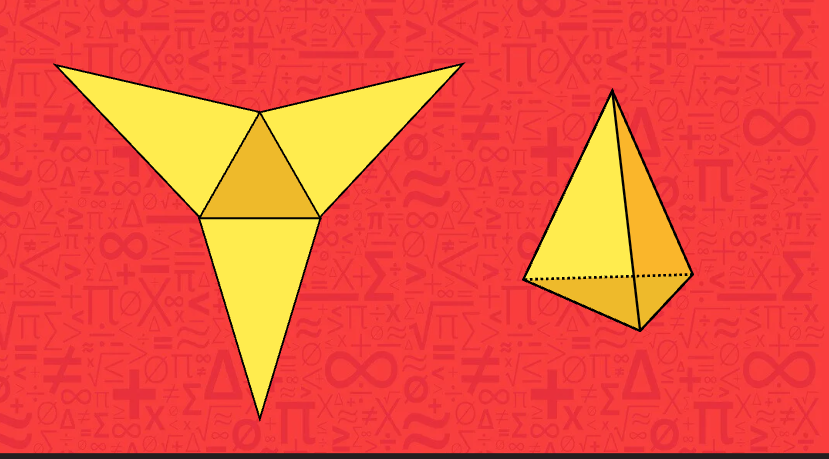

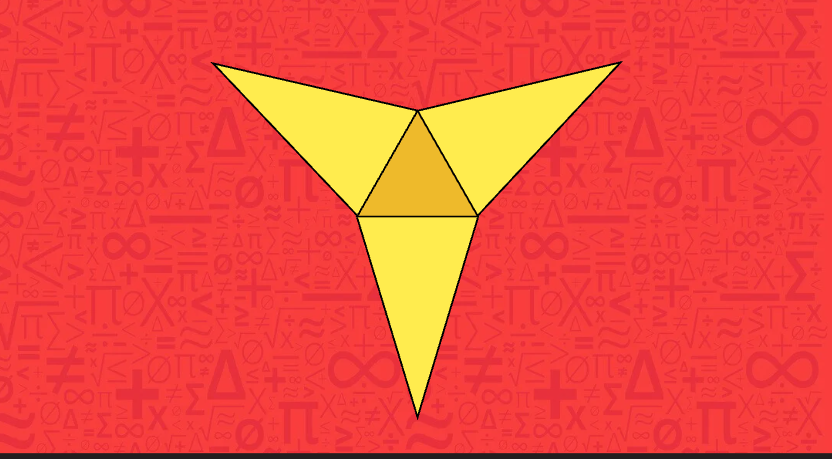

At Mathnasium, we like using examples to make new ideas easier to follow. So let’s walk through these steps with a net made of four triangles.

Step 1: Count the faces and notice their shapes

First, we look at what the net is made of. Our net has four triangular faces. So we know we’re looking for a 3D solid made entirely of four triangles.

Step 2: Match the faces to a possible solid

What 3D shapes have four triangular faces? We can match our net to a triangular pyramid because it has one triangular base and three triangular side faces.

Step 3: Picture how the edges meet when folded

Now we need to make sure those four triangles do fold into a triangular pyramid. One triangle becomes the base, while the other three fold upward around it. Their edges should meet without overlapping or leaving gaps.

We can imagine folding the net along its edges. Or if it is hard to picture, we can also cut out the net and fold it physically.

Since the faces can fold together correctly, the net forms a triangular pyramid.

How to Draw a Geometric Net?

To draw a net, we should follow these steps:

1. Identify all the faces of the solid. Make sure we know how many there are and what shape each one has.

2. Choose one face and draw it as the base of the layout.

3. Add the faces that connect to it. Place each new face along the edge it shares with the solid.

4. Check whether the net folds correctly. Picture the folds, or cut out the net and try folding it to confirm the faces meet without overlapping.

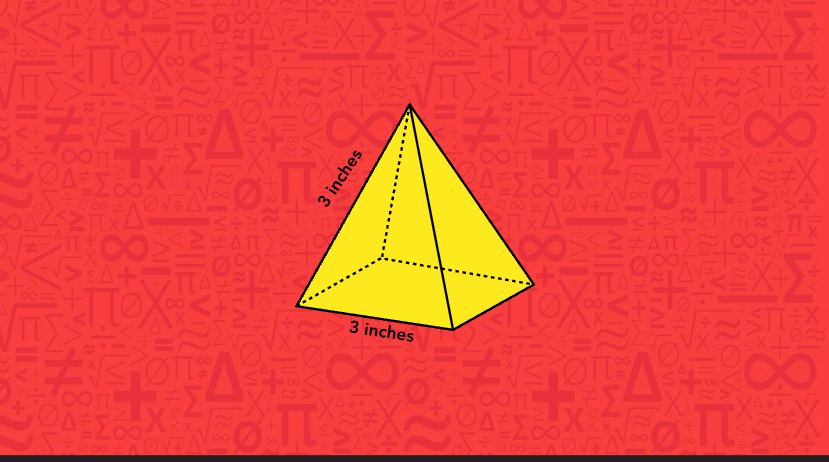

Now, we’ll try drawing a geometric net for a square pyramid step by step. A square pyramid is a 3D shape with a square base and four triangular faces that meet at one point at the top. In our example, every edge of the pyramid is 3 inches long.

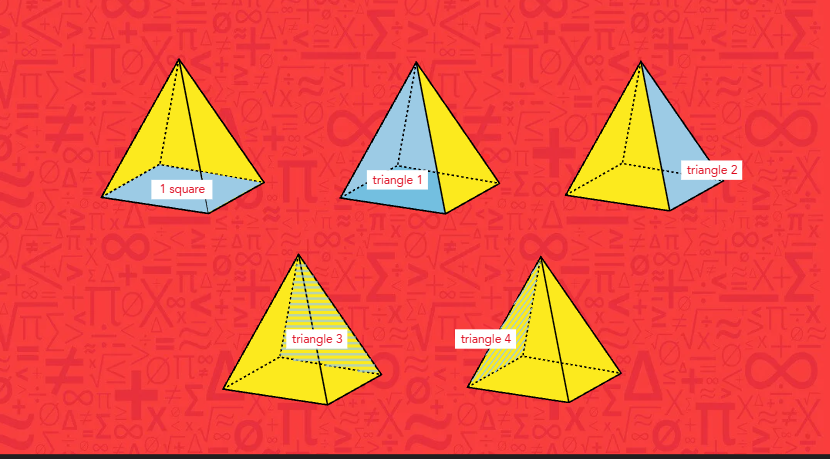

Step 1: Identify the faces

We start by counting the total number of faces on the solid and noting their shapes. In our pyramid, we can see one square base and four triangular faces around it.

So our net needs five faces: one square and four triangles.

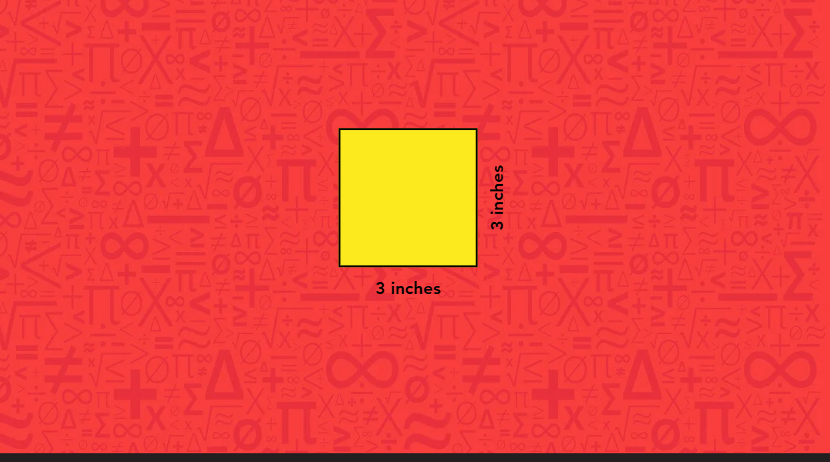

Step 2: Choose and draw a base face

Now we choose one face to anchor the net. For a square pyramid, we’ll take the square base because all four triangular faces connect to it. So, we draw one square with side lengths of 3 inches, the same as the four edges of the pyramid’s square base.

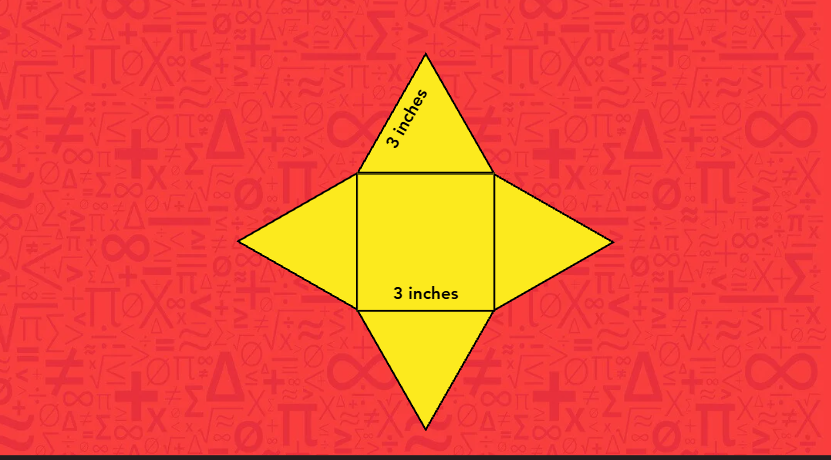

Step 3: Attach connected faces

Next, we add the faces that share edges with the square base. A square has four sides, and each side of the pyramid’s base connects to one triangular face.

So we draw one triangle along each side of the square. Each triangle has three sides measuring 3 inches, and its base lines up with one 3-inch side of the square.

At this step, we recommend using a ruler for accuracy because the edges that meet when we fold the net need to be the same length.

Step 4: Check the net by folding it

Finally, picture the four triangles folding upward along the sides of the square. Their tips should meet above the center of the base, and the side edges of neighboring triangles should come together without overlapping or leaving gaps.

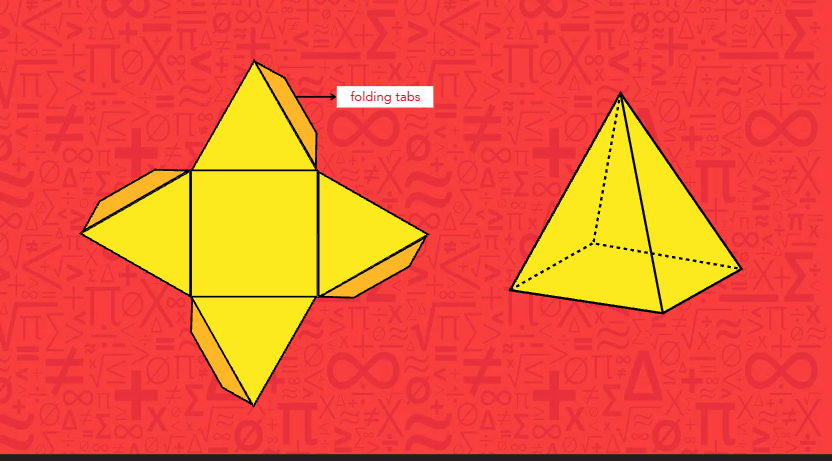

You can also cut out the net and fold it physically to check your drawing. Here's how you do it:

1. Add small folding tabs along some of the open edges.

2. Cut out the net, including the tabs.

3. Fold each face along its edge lines, then unfold it again. Creasing the lines first will make the net easier to assemble.

4. Apply glue to one tab on the outside of the net.

5. Bring the neighboring face over the glued tab and press the two pieces together.

6. Repeat with the remaining tabs, one at a time, until the 3D shape is complete.

Common Examples of Geometric Nets

You may come across some 3D shapes more often than others in math problems and tests. To help you recognize their geometric nets more quickly, we’ve put together some of the most common examples.

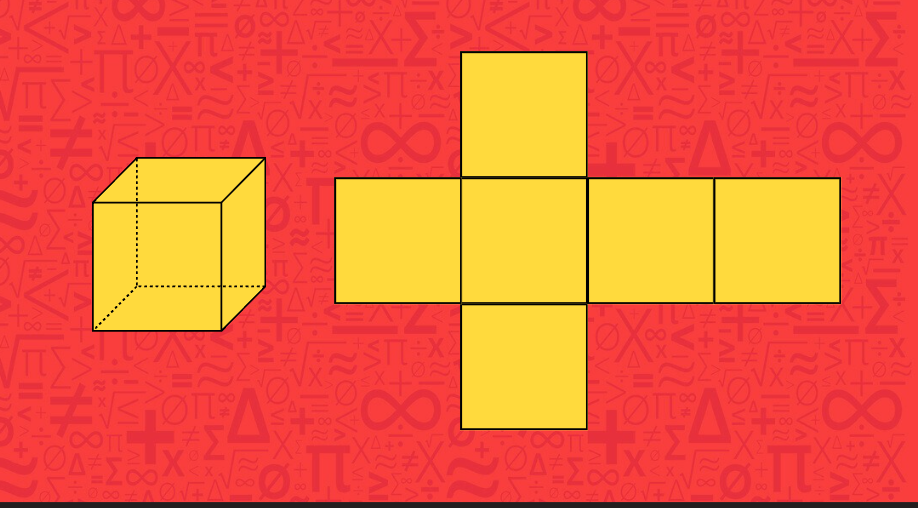

The Net of a Cube

The geometric net of a cube has 6 congruent square faces. We can lay them out in several different ways. But, usually, you’ll see them arranged in a "cross" or "T" shape.

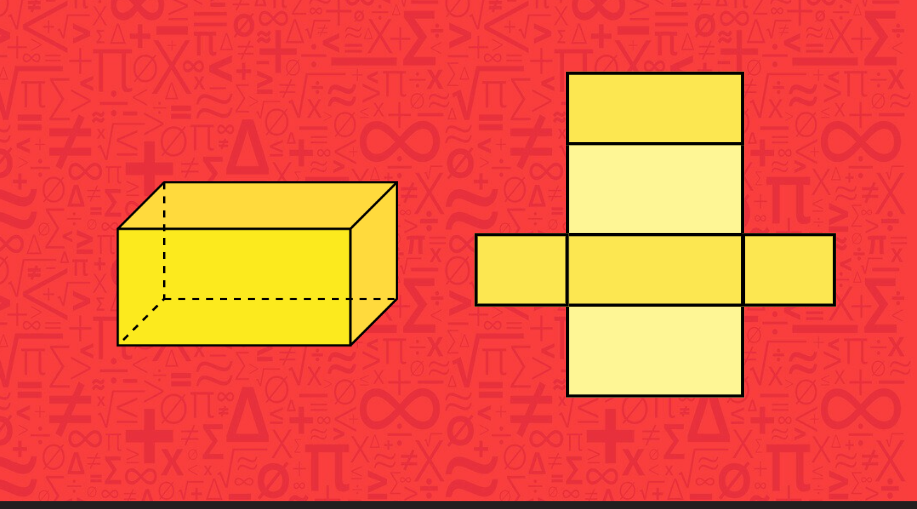

The Net of a Rectangular Box

To draw a net for a rectangular box, or rectangular prism, we arrange 3 pairs of congruent rectangles in a flat layout that can fold into the box. Each pair forms two opposite faces of the prism.

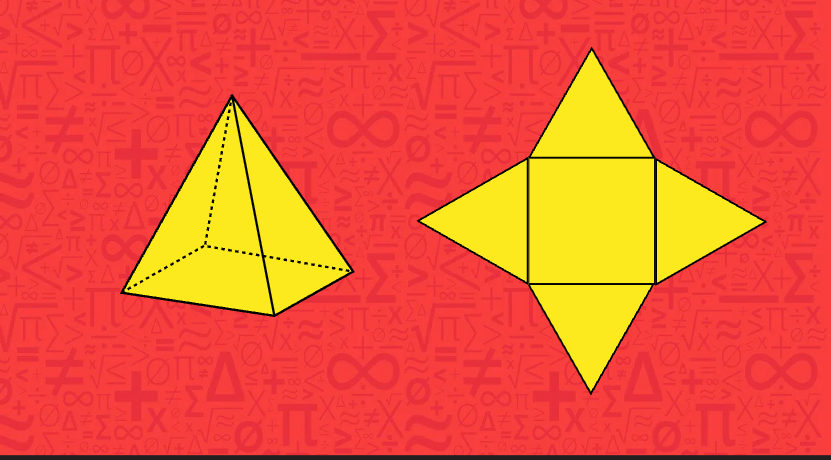

A Net of a Square Pyramid

For the net of a square pyramid, we need 1 square face and 4 triangles. In the layout, we can place the square in the center and attach one triangle to each of its four sides.

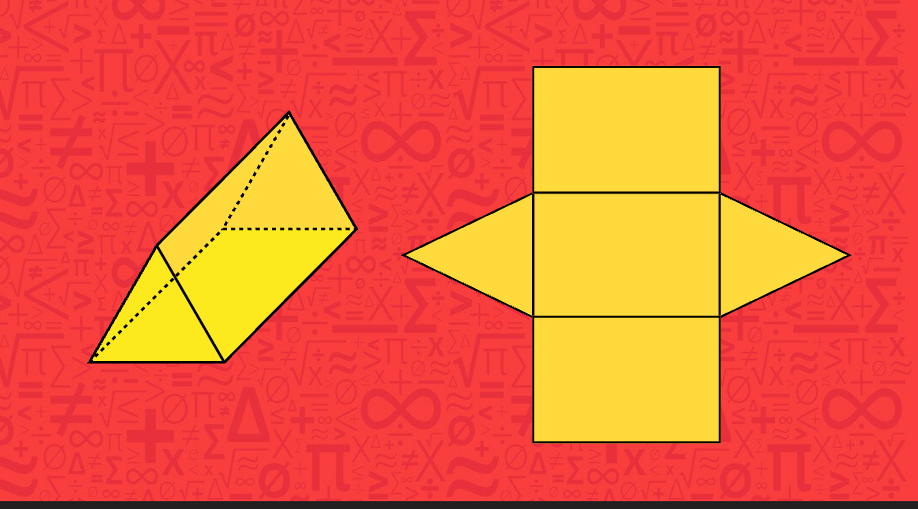

The Net of a Triangular Prism

A triangular prism is a 3D shape with 2 congruent triangle bases and 3 rectangular faces connecting them. We can picture the net as three rectangles lined up side by side, with a triangle attached at each end.

📕 You May Also Like: Surface Area of a Rectangular Prism – A Kid-Friendly Guide

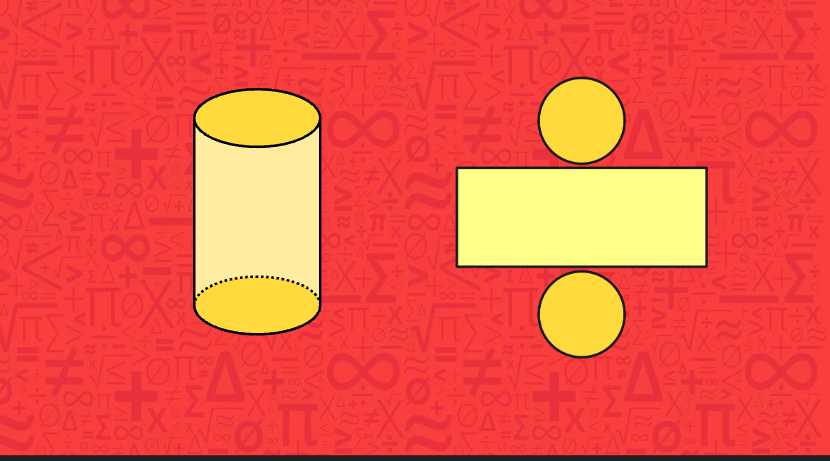

The Net of a Cylinder

Imagine you roll a rectangle into a tube and add 2 congruent circles to close the openings. The 3D shape you get is called a cylinder. For its layout, we draw one rectangle with a circle attached at a point on each of two opposite edges.

📕 You May Also Like: 2D Shape Names: The Complete List from 3 to 12 Sides

What 3D Shape Is Hiding in This Net?

Can you figure out what 3D shapes these nets form and how they fit together?

• Print and cut out each net along the outer edges.

• Fold each net along the inner lines to build the separate 3D shapes.

• Combine the finished shapes to reveal the final figure.

Or flex your imagination muscles and try to picture the whole thing in your mind!

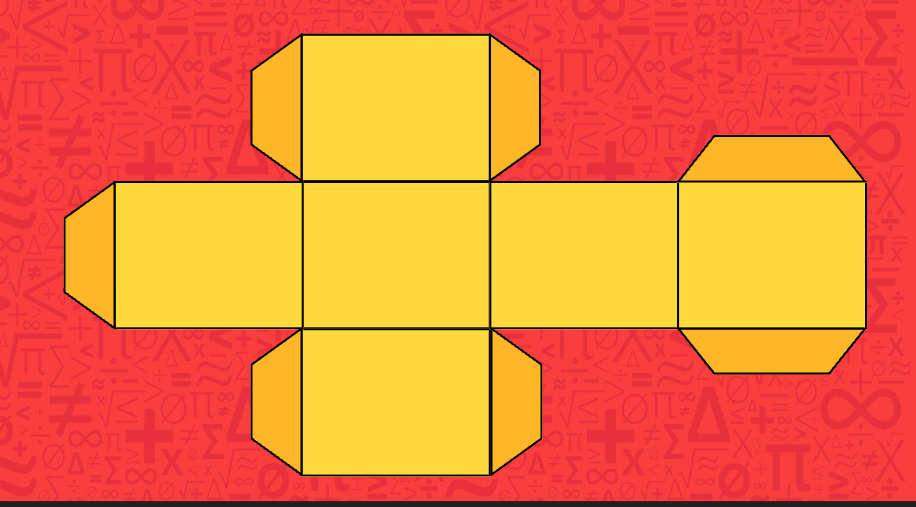

Part 1

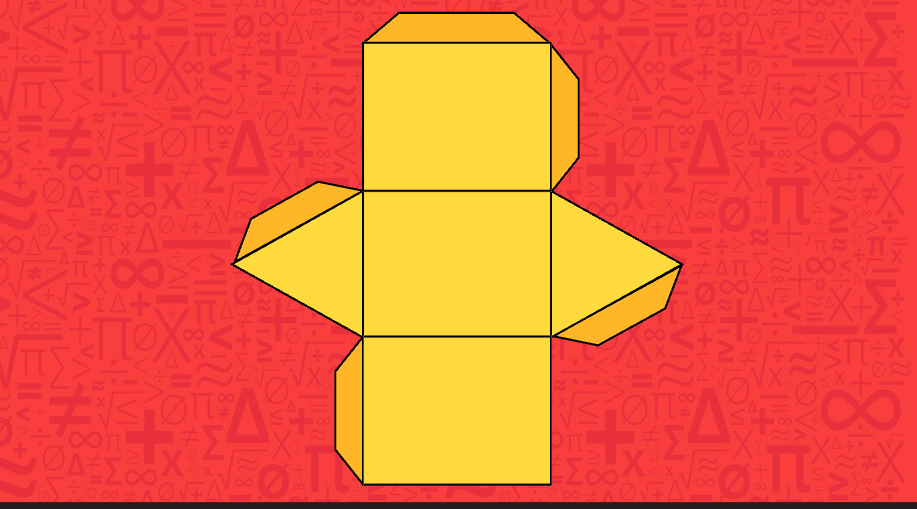

Part 2

Maybe you have some engineering skills of your own. See what you can build, then check your answer at the bottom of the page.

Mathnasium tutors help students build a solid understanding of math topics, like geometric nets and 3D shapes, through hands-on activities and visual examples.

How Mathnasium Helps Students With Geometric Nets (and Any Other Math Topic)

Mathnasium is a math-only learning center dedicated to helping K–12 students of all skill levels excel in math.

To help students make sense of math concepts like 3D shapes and geometric nets, we use a variety of teaching techniques and hands-on activities.

This is all a part of the Mathnasium Method™, our proprietary teaching approach, which is designed to meet students where they are and guide them toward math mastery step by step.

Here’s how it works.

Each student begins with a diagnostic assessment that helps us understand their current skill level, knowledge gaps, goals, and how they think and feel about math.

Using these insights, we create a personalized learning plan focused on the skills the student needs. This can include reinforcing shape recognition, building spatial reasoning, working with surface area, or preparing for more advanced.

Our specially trained tutors follow the plan closely and provide live, face-to-face instruction in a caring and fun group environment. They use mental, verbal, visual, tactile, and written techniques to help students build the kind of hands-on, visual understanding that carries into geometry and beyond.

Students also get time to think through problems before tutors step in. We ask them to explain their reasoning and guide them toward the answer instead of simply correcting the work. This way, students build problem-solving skills, critical thinking, and greater independence in geometry.

Fun is an important part of the approach, too. We use hands-on and game-based activities like the ones we explored today, along with rewards and consistent encouragement, to help students stay engaged as they work with shapes and build spatial reasoning.

The results speak for themselves:

• 94% of parents report an improvement in their child's math skills and understanding

• 93% of parents report their child's improved attitude toward math after attending Mathnasium

• 90% of students saw an improvement in their school grades

With over 1,100 learning centers across North America, there is likely a Mathnasium close to you.

For families in and near Cypress, Mathnasium of Cypress brings that same approach close to home, with specially trained tutors who help students make sense of nets, three-dimensional shapes, and the geometry skills that build from them.

Whether your child needs to reinforce geometry foundations, keep up with current coursework, or get ahead, a free diagnostic assessment is a great place to start. Using what we learn, we create a personalized learning plan that helps your child master the skills they need next.

📅 Schedule a Free Assessment at Mathnasium of Cypress

Not near Cypress?

📍 Find a Mathnasium Learning Center Near You

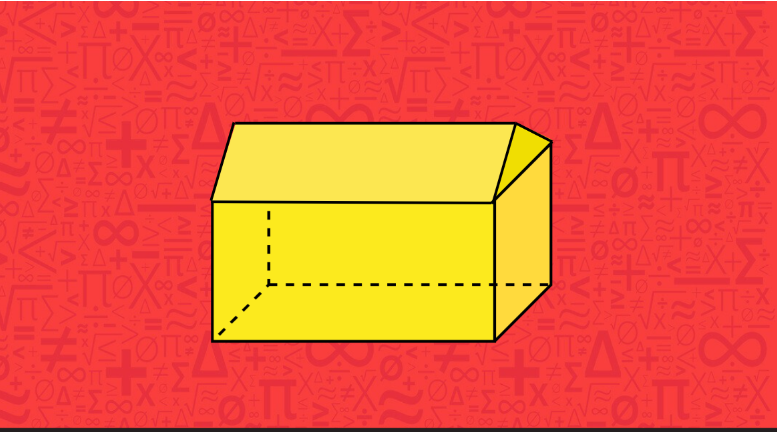

Pssst! Check Your Shape Here

Did you fold it? If you ended up with a house model, you got it! Looks like we’ve got a future architect in the making.
